150 years of the Shelton Works - page 5

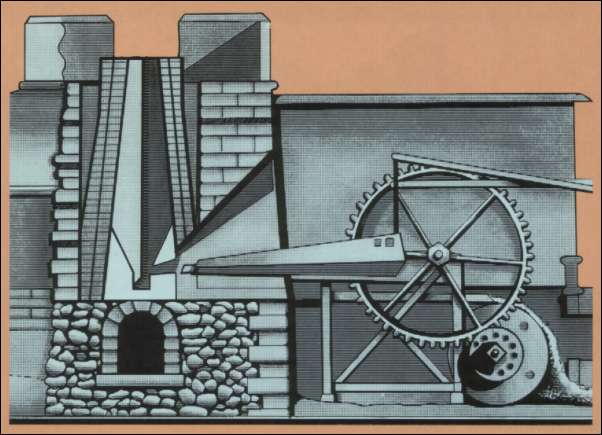

Sectional view of an Eighteenth Century blast furnace
Sectional view of an Eighteenth Century blast furnace
showing the waterwheel-driven bellows.
This is a French furnace but the type was common all over Europe at that time.
