The Middleport Pottery of Burgess and Leigh (opened 1888)





 The 'Curvex' pattern printer



Location 21 on the plan


Next: hand fettling
Previous: the drying mangle

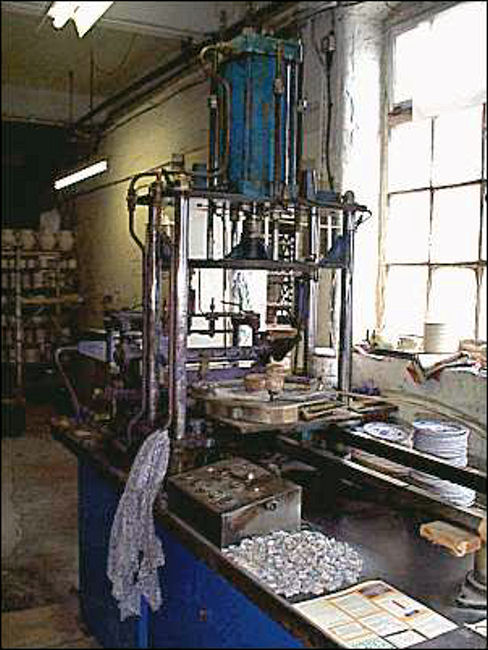

Patterns can be printed on some ware with paint on a rubber 'stamp'
Patterns can be printed on some ware with paint on a rubber 'stamp'
the machine is known as a 'Murray Curvex'

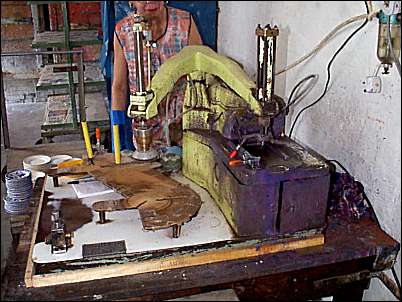

This 'mini curvex' is used for back-stamps
This 'mini curvex' is used for back-stamps

the 'back-stamp' is the makers mark which is put on the back of the ware to identify the manufacturer and the pattern name

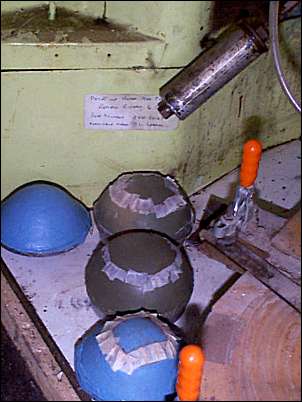

The rubber stamps which are 'inked' and then applied to the ware to leave the impression
The rubber stamps which are 'inked' and then applied to the ware to leave the impression

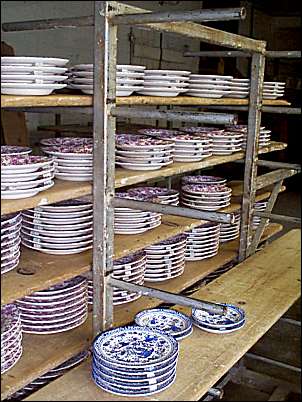

Plates which have been decorated by printing on the curvex
Plates which have been decorated by printing on the curvex
